TECHNICAL INFORMATION

Technology:
• LED pulsed light with photodiode array

Optical resolution:
• 4×4 mm

Vision:
• free fall – single / double sides

Version:
• 2 WAY / 3 WAY

Ejection:
• by fingers / by air nozzles



BROCHURE



PLAYLIST VIDEO



ROI CALCULATOR

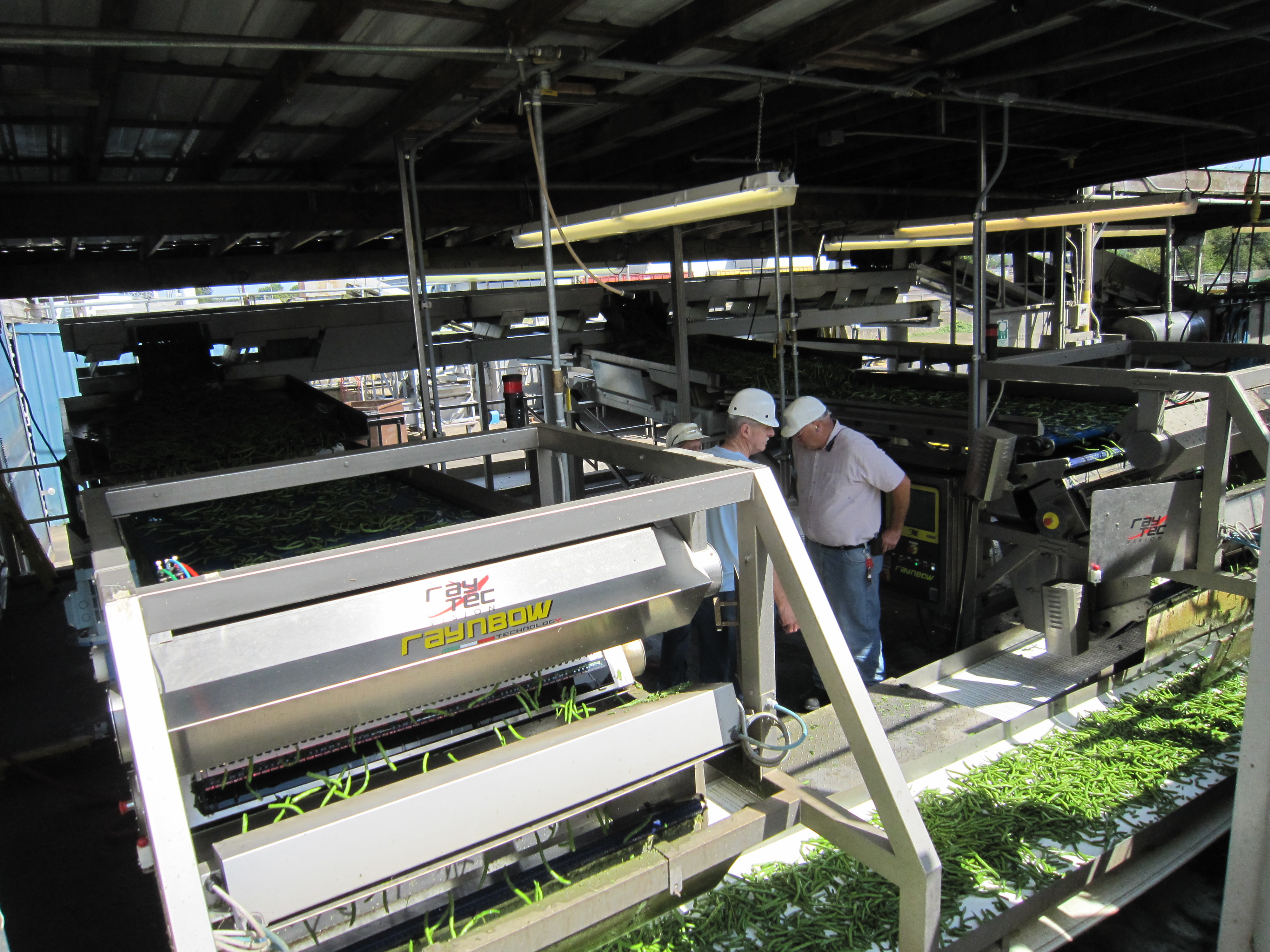

Raynbow is an optical sorting machine with high resolution sensors that examine the product using the “high speed double vision” system which analyses 100% of the surface of each product.

The system is used to check agro-food products: Fruit and Vegetables.

Raynbow can dispose of colour defects, marked produce and foreign bodies also the same colour as the good product. The product is fed on the conveyor belt used to stabilise the product so it doesn’t roll off. By doing so, all the products can be inspected and, if necessary, ejected on presenting the same conditions in both the vision zone and the reject zone.

Raynbow can have a palette reject system with electro-pneumatic or air activation using electrically controlled ejection valves.

It can have a single ejection system, or in 3Way mode, can have two reject systems that differentiate unusable produce from defects considered second choice.

APPLICATIONS

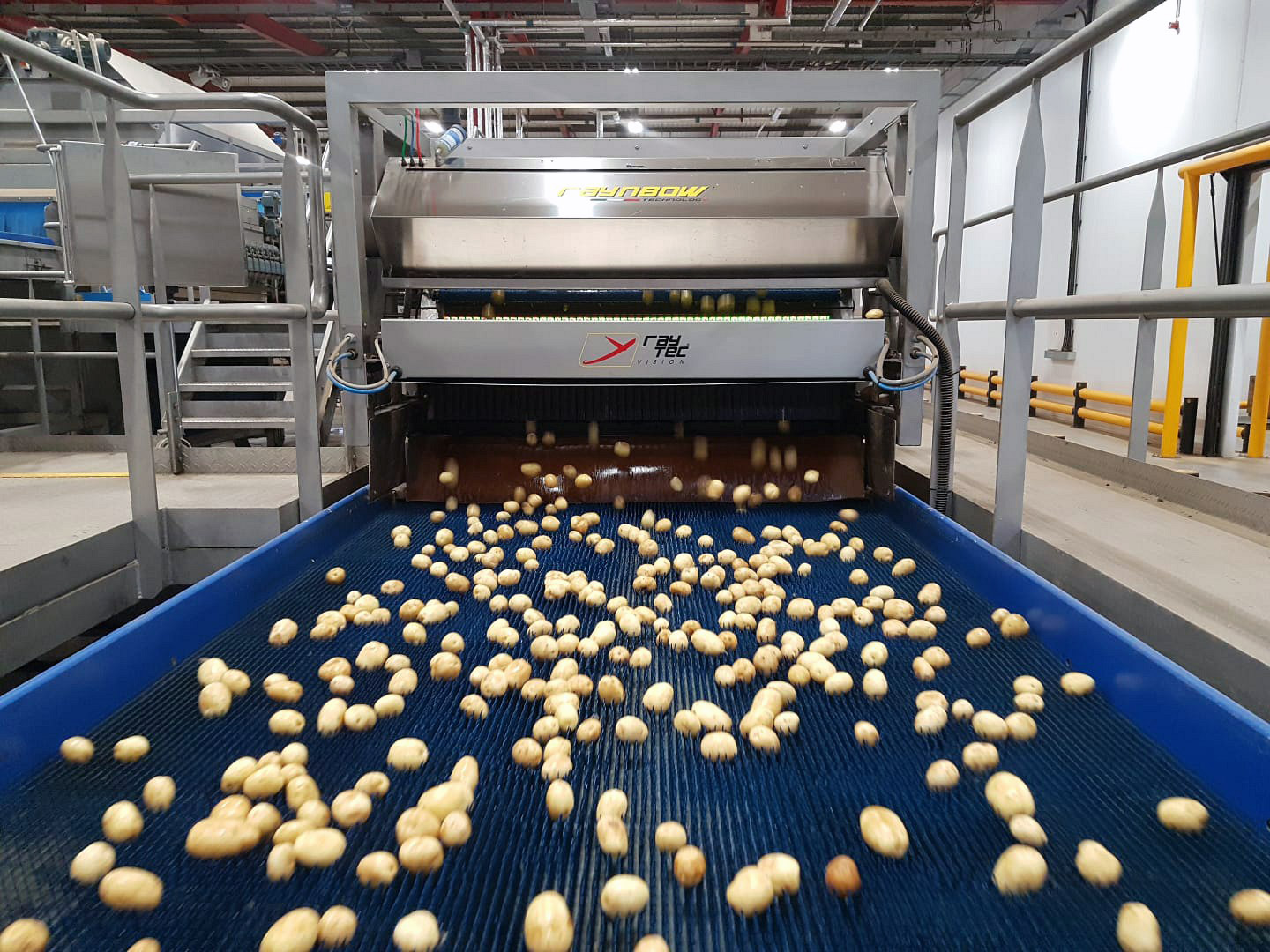

  • Potatoes

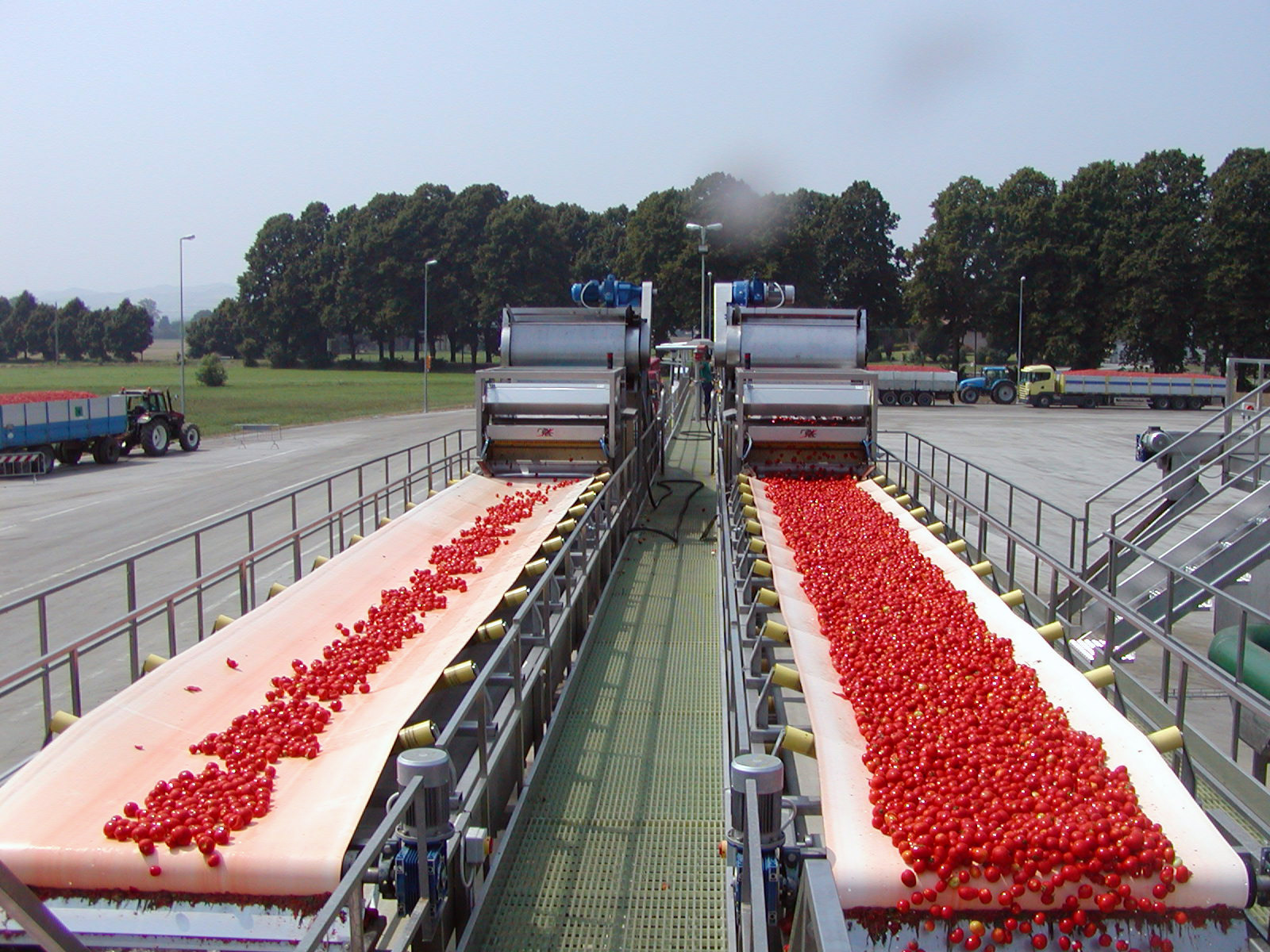

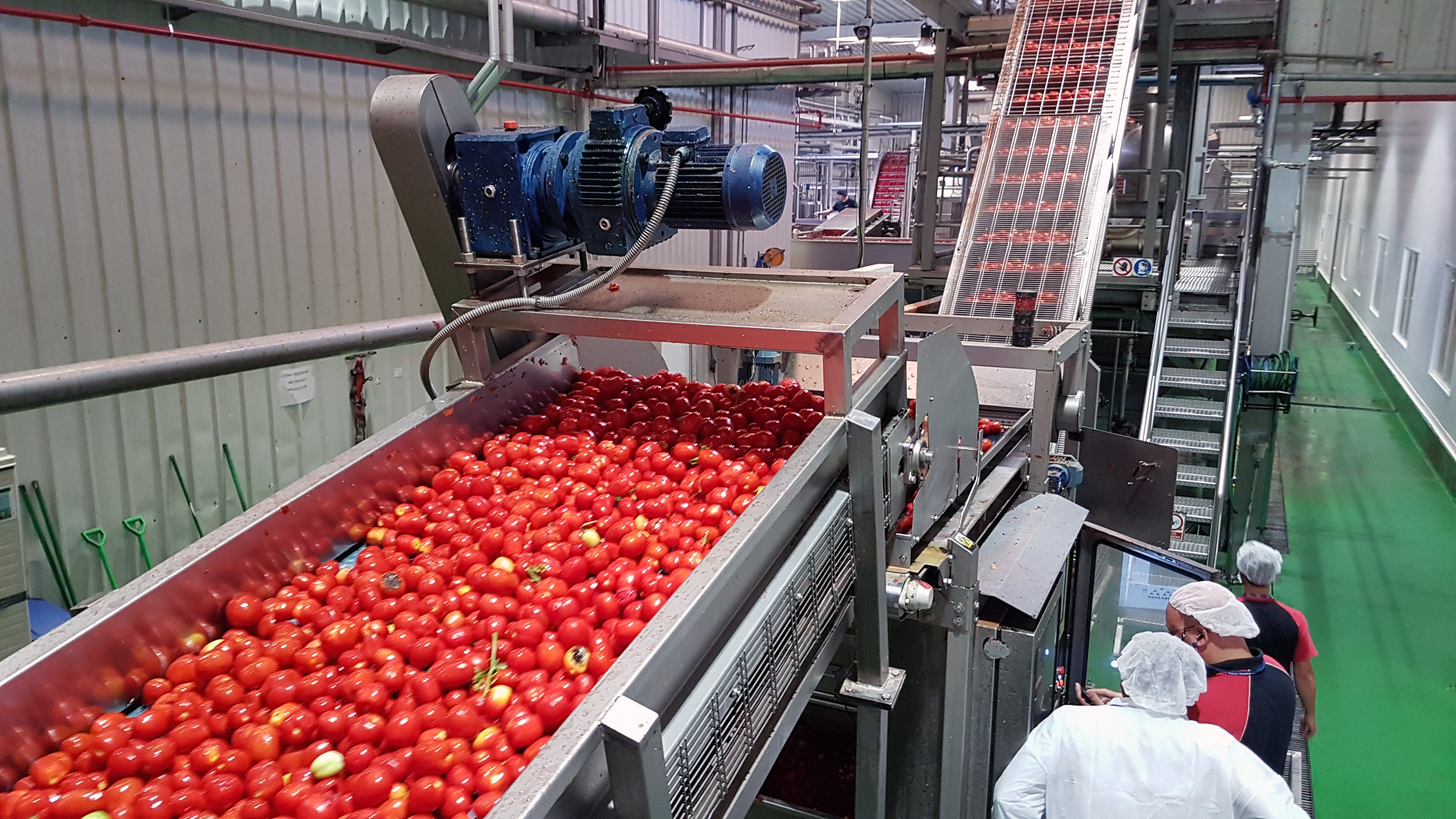

  • Tomatoes

  • Carrots

  • Apples

  • Onions

  • Beetroots

  • Green beans

  • Peppers

  • Peaches

  • Pears

  • Cherries

The economical and versatile
optical sorter

WATCH NOW

TECHNOLOGY

  • RAYNBOW is a hexa-chromatic machine equipped with NIR (Near InfraRed) technology for Visible Color analysis.
  • NIR technology can detect the presence of rot and foreign bodies (even if completely black).
  • Visible Color analysis allows colour defects to be detected, such as green products, yellowing, etc. In optional mode, the machine can conduct chlorophyll analysis to allow very accurate detection of foreign bodies in products with high chlorophyll content (apples, green beans).
  • An ethernet connection is available for remote control.
  • The machine detects statistical data on rejected products for quality analysis of the selected raw material.

BENEFITS

High
production

Low
maintenance

Real-time
detection

Automatic
image capture

Constant
selection

Easy inline integration

User-friendly
software

Compact
footprint
TECHNICAL CHARACTERISTICS
Model R-230 R-240 R-250 R-250 HS R-270
Sorting channels 30 40 50 50 70
Vision area width (L) 750 mm 1000 mm 1250 mm 1250 mm 1750 mm
Pixel dimension 4×4 mm
User interface Interactive LCD touch-screen color digital panel onboard
Rejection channel width 25 mm
Rejection type Mechanical fingers (Mod. M) / Air jets (Mod. J)
External and/or remote connection Ethernet and/or modem
Conveyor speed 50-70 m/min
